JET JDP-17, 17" Floorstanding Drill Press JT9-716300

Product Description

Introducing the new JET JDP-17, 17” Drill Press. From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping. CSA Certified.

Features

Integrated depth stop makes repetitive drilling quick and easy
Large cast iron base provides stability

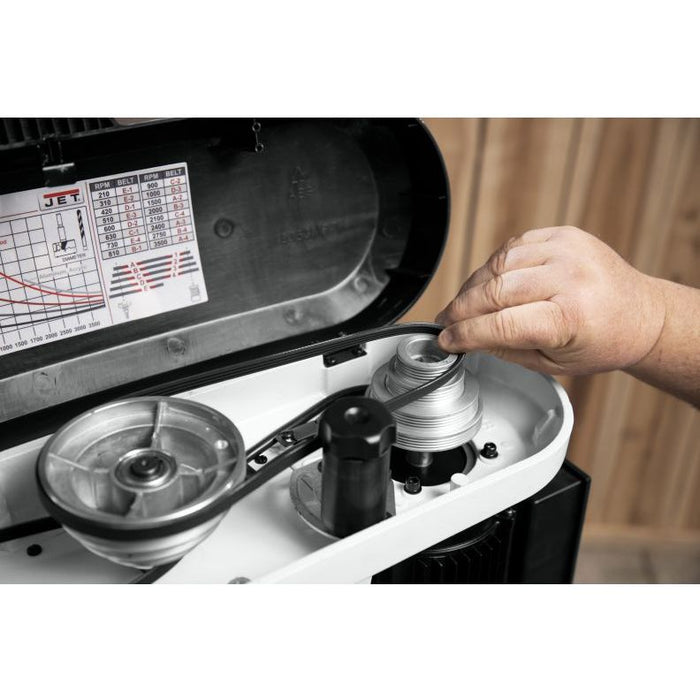

One-handed belt tensioning allows for rapid speed changes
Power switch features a safety key and large, paddle-style off button
Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
Replaceable MDF table insert
Table edge lip designed to make clamping easy

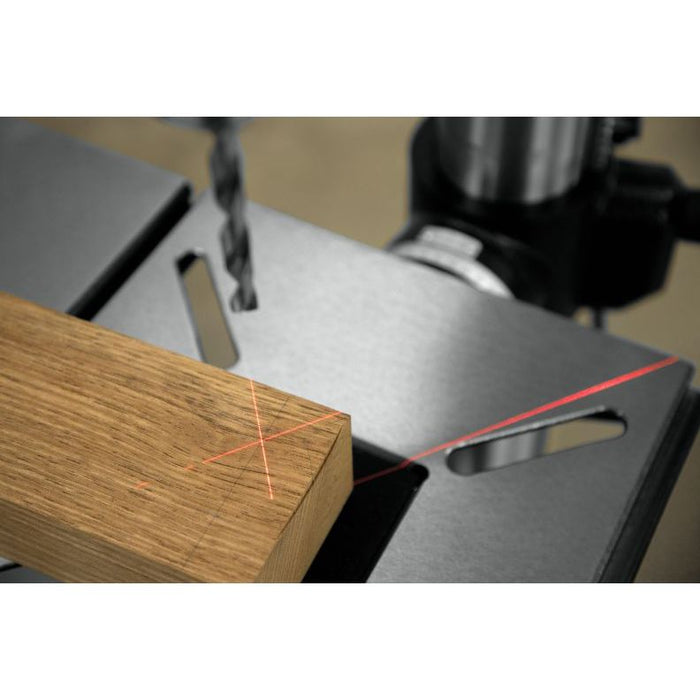

Xacta-X laser system easily identifies the drill center

Specifications

Stock Number	JT9-716300
Assembled Machine Dimensions (L x W x H) (In.)	28-1/2 x 19 x 65
Chuck Distance to Base (In.)	42-7/8
Chuck Distance to Table (In.)	25-7/8
Chuck Size (In.)	5/8
Column Diameter (In.)	3-5/32
Model Number	JDP-17
Motor Power (HP)	3/4
Number of Spindle Speeds	16
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	15
Spindle Distance to Base (In.)	46-1/2
Spindle Distance to Table (Max.) (In.)	30
Spindle Travel (In.)	5
Style (Type)	Floor standing Model
Swing (In.)	16-7/8
Table Size (L x W) (In.)	14 x 19
Warranty	5 Year
Weight (Lbs.)	187
Gross Weight	198

Product Document

Manual

Specifications
