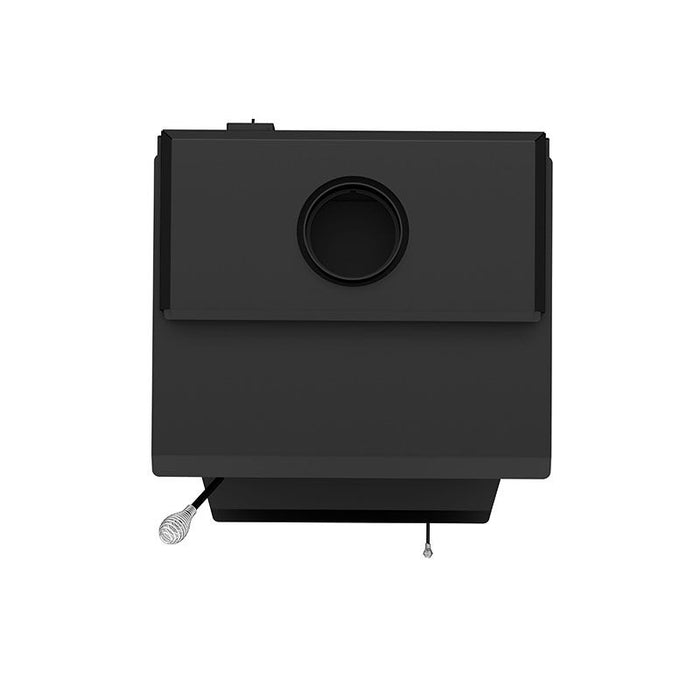

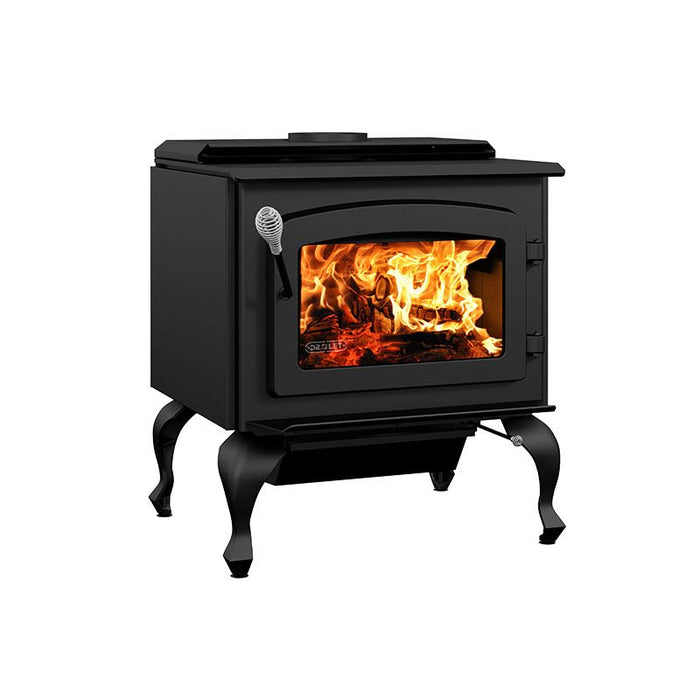

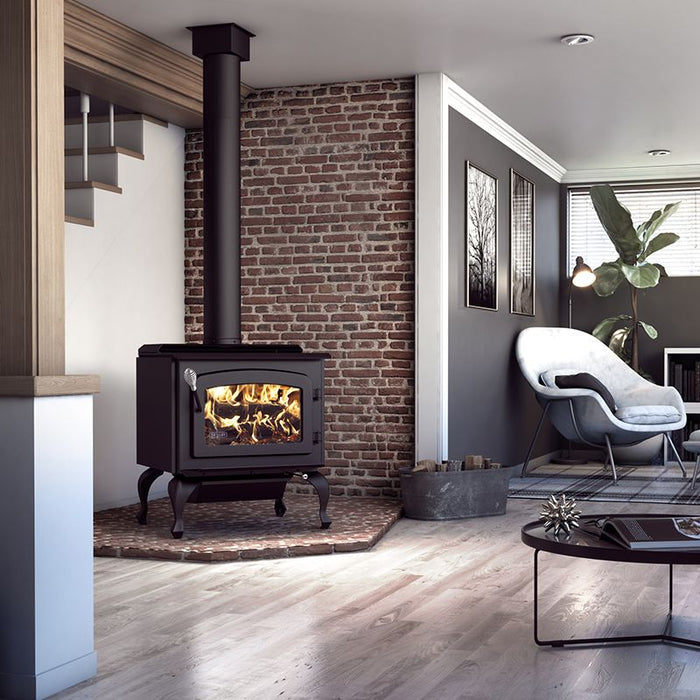

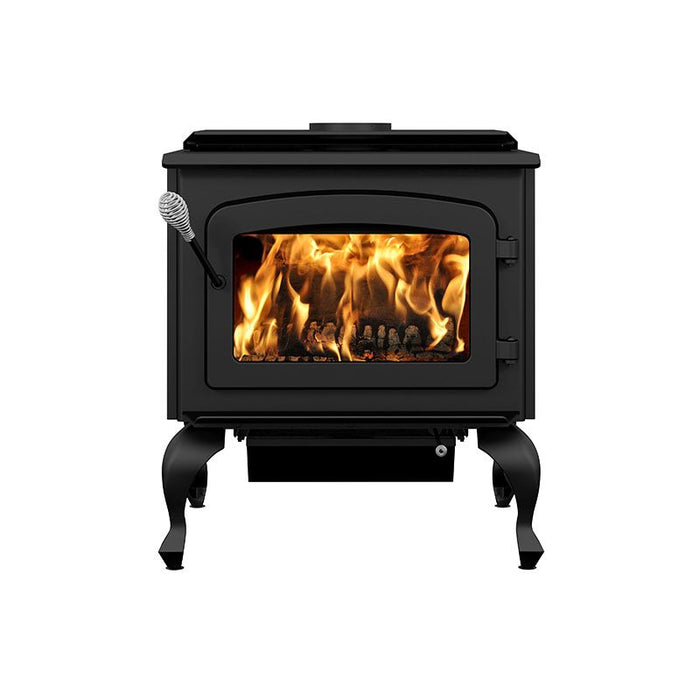

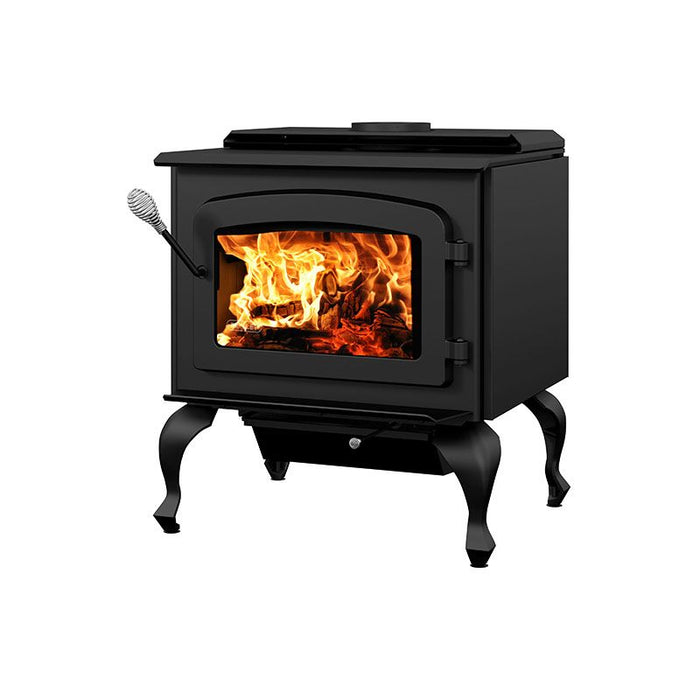

Drolet Escape 1800 Wood Stove On Legs - Black Door DB03105

Product Description

Ideal for spaces up to 2,100 ft², this large non-catalytic wood stove produces up to 75,000 BTU/h and emits only 1.54 g/h of fine particles. The unit is equipped with side panels that reduce clearances to combustible materials, and a top heat exchanger that redirects heat to the front of the unit.

Included: cast iron legs with ash drawer, top air deflector, ceramic glass, side panels, ash lip, air damper

Up to 8 hours burn time
Up to 20'' logs
2.4 ft³ firebox
Heavy duty 5/16'' steel top
EPA certified
Proudly made in Canada
Limited lifetime warranty
Certified for mobile home and alcove installation
Weight : 375 lbs

Specifications

Fuel type	Dry cordwood (16" recommended)
Recommended heating area (9)	500 - 2,100 ft²
Overall firebox volume	2.4 ft³
EPA loading volume	2.02 ft³
Maximum burn time (9)	8 h
Maximum heat output-dry cordwood (4)	75,000 BTU/h (22 kW)
Minimum overall heat output rate (4) (5)	14,800 BTU/h (4.34 kW)
Maximum overall heat output rate (4) (5)	28,600 BTU/h (8.38 kW)
Average overall efficiency-dry cordwood (HHV) (5) (6)	69 %
Average overall efficiency-dry cordwood (LHV) (5) (7)	74 %
Optimum efficiency (1) (2)	77 %
Optimum heat transfer efficiency (8)	75 %
Average particulate emission rate (3)	1.54 g/h
Average CO (10)	89.4 g/h
Size	Large
Alcove installation approved	Yes
Mobile home approved	Yes, with fresh air intake
Premium quality blower included (CFM)	Optional
Certified according to applicable standards	By an accredited laboratory (CAN/USA)
Combustion technology	Non-catalytic
Stainless-steel secondary-air system	Yes
Flue outlet diameter	6"
Distance-center of the flue outlet to back unit	6 3/4"
Distance-center of the flue outlet to side unit	12 7/8"
Chimney diameter	6"
Type of chimney	CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height	12'
Overall dimension (Width)	26 1/8"
Overall dimension (Depth)	30 1/8"
Overall dimension (Height)	25 7/8"
Door type	Single, glass with cast iron frame
Door opening size (Width)	17 1/2"
Door opening size (Height)	9"
Glass type	Ceramic glass
Glass surface - W x H	16" x 9 1/4"
Firebox size (Width)	21"
Firebox size (Height)	12"
Firebox size (Depth)	16 1/2"
Maximum log length	20"
Log positioning	Loading over width
Firebox lined with refractory bricks	Yes
Baffle type	High quality vermiculite
High-efficiency certified appliance	Yes, EPA 2020 approved
Canadian Standard (emissions)	CSA B415.1-10
USA Standard (emissions)	EPA / ASTM WK47329
Canadian Standard (safety)	ULC S627
USA Standard (safety)	UL 1482, UL 737
Steel thickness-body	3/16"
Steel thickness-top	5/16"
Warranty	Limited lifetime
Shipping weight	368 lb (167 kg)

Clearance To Combustibles

Country	Canada		United States
Size	Single wall pipe	Double wall pipe	Single wall pipe	Double wall pipe
Clearance - Back wall	14 1/2"	6"	11"	6"
Clearance - Side wall	17"	17"	16"	16"
Clearance - Corner	10"	7"	10"	7"
Clearance - Base of the unit to ceiling**	84"	84"	84"	84"

The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
Optimum overall efficiency at a specific burn rate (LHV).
This appliance is officially tested and certified by an independent agency.
The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
As measured per CSA B415.1-10 stack loss method.
Higher Heating Value of the fuel.
Lower Heating Value of the fuel.
The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
