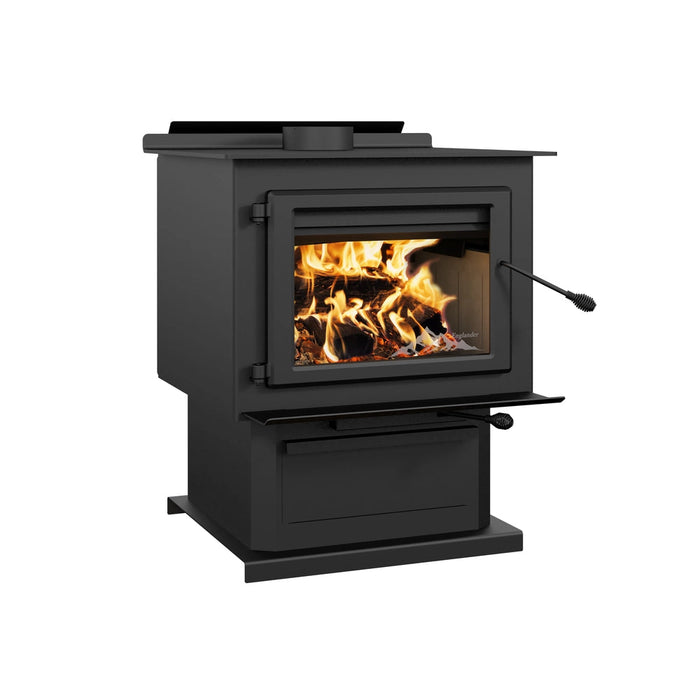

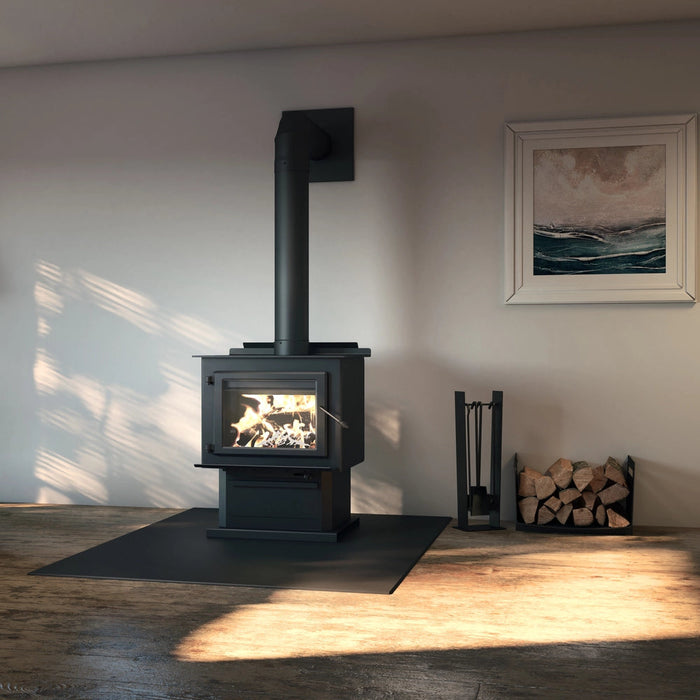

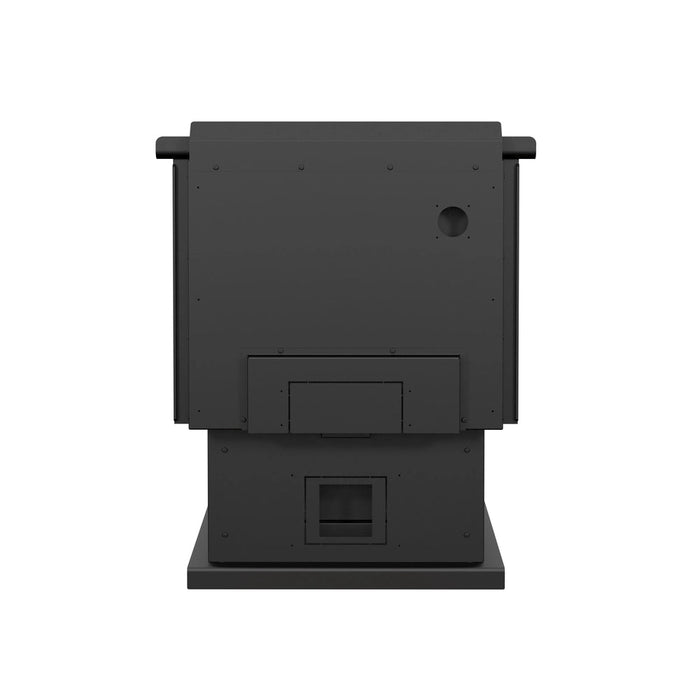

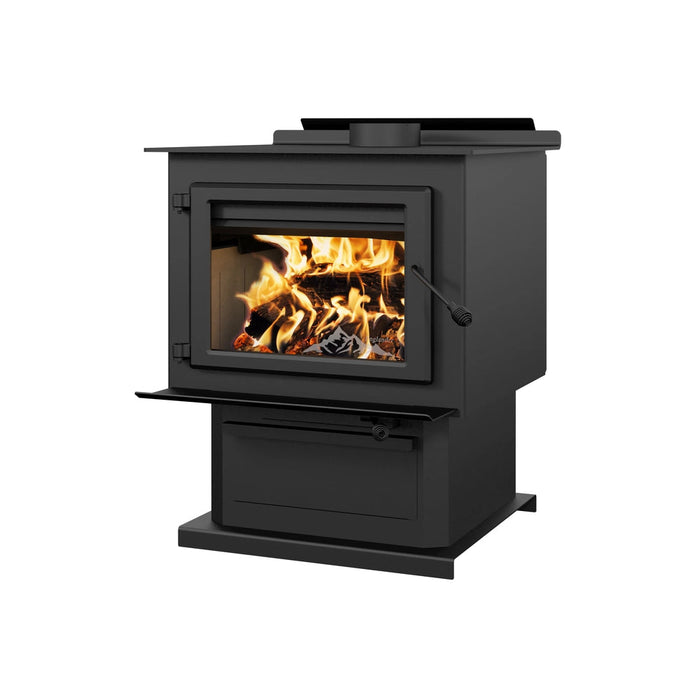

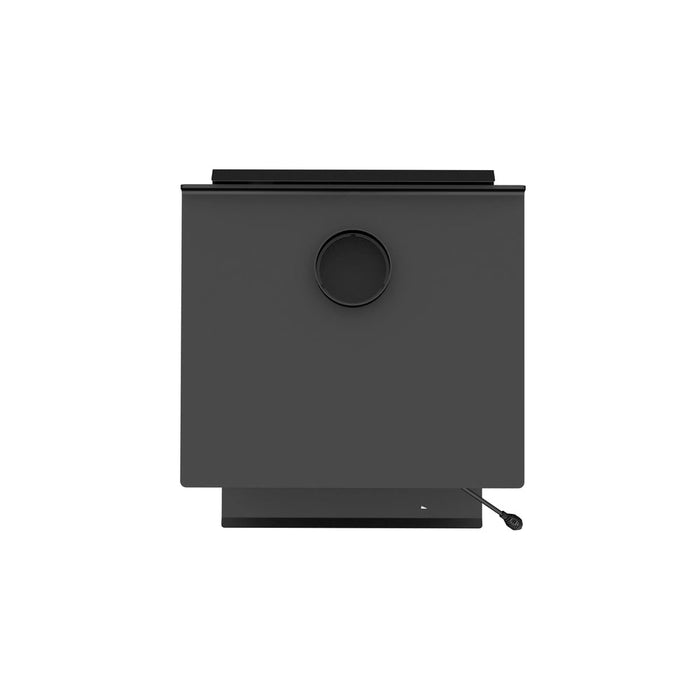

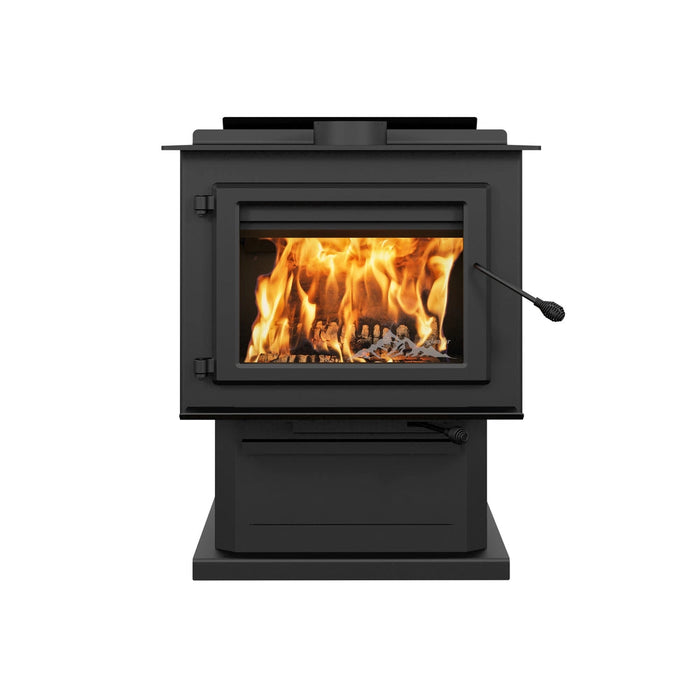

England's Stove Work Blue Ridge 500 Wood Stove ESW0012

Fuel type	Dry cordwood (16" recommended)
Recommended heating area	1,000 - 2,700 ft²
Overall firebox volume	3.5 ft³
EPA loading volume	2.88 ft³
Maximum burn time	10 h
Maximum heat output-dry cordwood	110,000 BTU/h
Minimum overall heat output rate	17,200 BTU/h (5.0 kW)
Maximum overall heat output rate	57,800 BTU/h (16.9 kW)
Average overall efficiency-dry cordwood (HHV	71 %
Average overall efficiency-dry cordwood (LHV	76 %
Optimum efficiency	77 %
Optimum heat transfer efficiency	75 %
Average particulate emission rate	1.6 g/h
Average CO	73 g/h

Alcove installation approved	Yes
Mobile home approved	Yes, with fresh air intake
Certified according to applicable standards	CAN/USA accredited laboratory
Overall dimension (Width)	28 1/8"
Overall dimension (Height)	35 1/8"
Overall dimension (Depth)	31 1/4"
Premium quality blower included (CFM)	Optional
Combustion technology	Non-catalytic
Stainless-steel secondary-air system	Yes
Flue outlet diameter	6"
Distance-center of the flue outlet to back unit	8"
Distance-center of the flue outlet to side unit	14 1/8"
Recommended chimney diameter	6"
Type of chimney	ULC-S629, UL 103 HT (2100 °F)
Minimum chimney height	12'
Door type	Single, glass with cast iron frame
Door opening size (Width)	19"
Door opening size (Height)	9 7/8"
Glass type	Ceramic glass
Glass surface - W x H	16 5/8" x 11 3/4"
Steel thickness-body	3/16"
Steel thickness-top	5/16"
Firebox size (Width)	22 7/8"
Firebox size (Height)	13"
Firebox size (Depth)	20 1/8"
Log positioning	Loading over width and over depth
Maximum log length	22" oriented East-West
Firebox lined with refractory bricks	Yes
Baffle type	High quality vermiculite
High-efficiency certified appliance	Yes, EPA 2020 approved
Canadian Standard (emissions)	CSA B415.1-10
USA Standard (emissions)	EPA
Canadian Standard (safety)	ULC S627
USA Standard (safety)	UL 1482, UL 737
Warranty	Limited 5 years
Shipping weight	480 lb (218 kg)
