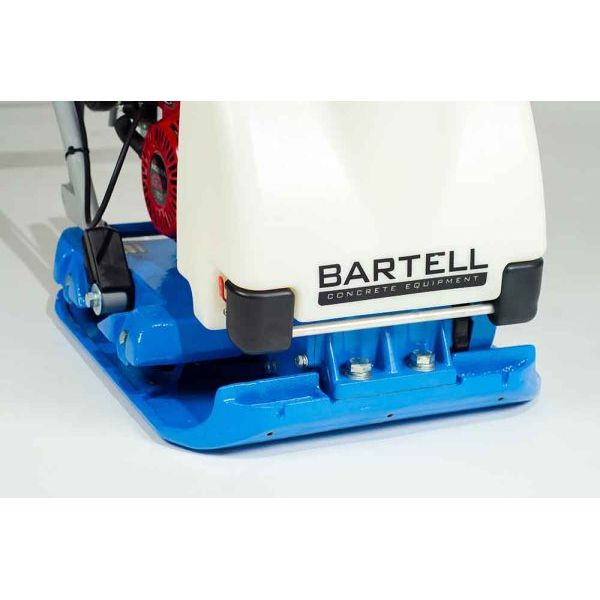

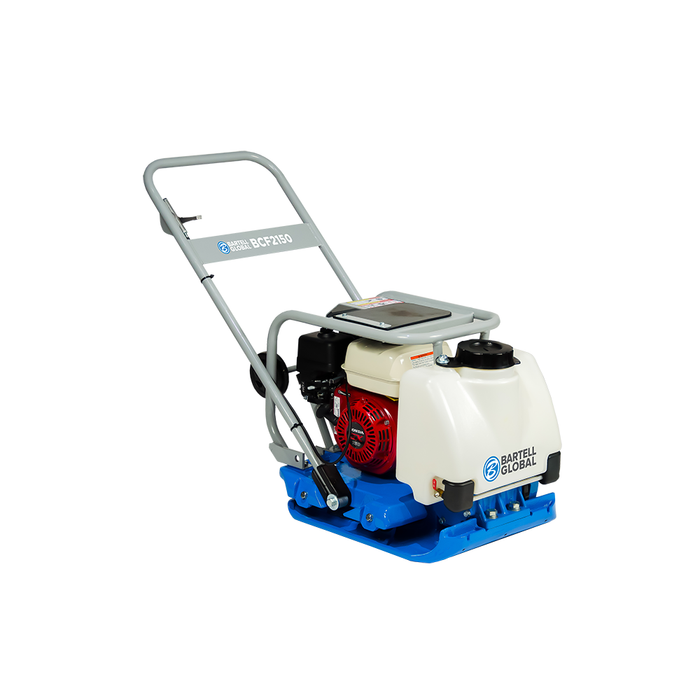

Bartell Global Forward Plate Compactor with Honda GX160 Engine and Water Tank BCF2150

Product Description

Bartell forward plates are innovative, hard-hitting, and low maintenance. Bartell's biggest and strongest forward plate compactor is perfect for many compaction applications — especially pavers — because of the high compaction force. Many pavers call for the base material to be compacted with over 4000 lbs, which means the BCF2150 is perfect for use on the pavers themselves (with the optional polyurethane mat), but also for compressing the base material underneath. The built-in water tank allows the compactor to be used on asphalt, and also allows for better dust control on dirt/soil.

Features

Robust throttle control mounted on handle for safe and convenient operator control
Anti-vibration handle
Folding handle for compact storage
Retractable wheels flip down for built-in mobility
Integrated lifting bale for safe loading and unloading
Straight-edge plate design leaves no unreachable margins
Sealed housing keeps debris from interfering with the belt
Built-in removable water tank
Optional urethane mat protects pavers and slabs from scratches and breakage

Specifications

Engine	Honda GX160, 4.8hp (3.6kW)
Compaction Force	4740 lbf, 21 kN, 2150 kgf
Max Travel Speed	82'/min (25m/min)
Length	44" (1118mm)
Width	20" (508mm)
Height	33" (838mm)
Weight	219 lbs (95kg)
Plate Size	20" x 21" (500mm x525mm)
