Chiko USA GroundFlex U2V Solar Panel Ground Mount Kit

This product will be a Terminal or Business with loading dock Delivery.

Panel Dimensions (Max): 67.8 x 44.6 in

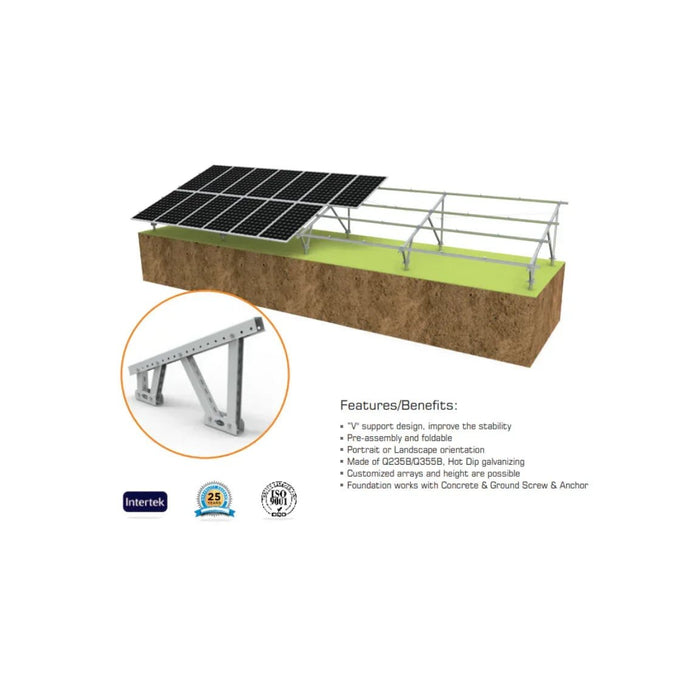

The Chiko USA GroundFlex U2V is a durable and versatile solar panel ground mount system designed for both concrete foundation and ground screw foundation installations. Made from high-performance, all-galvanized materials, this system ensures longevity with a service life of over 30 years.

Mounting Options

Ground Screw Mount – Ideal for installations where excavation is limited or challenging. Requires specialized heavy equipment for installation.
Concrete Foundation Option – A reliable, traditional option for securing the system on a concrete base.
Trident Mount Kit – A ground mounting system with a patented three-cylinder pile design, offering strong support and adaptability for various soil conditions.
High Wind Variation - Designed for those who live in windier areas or with an AHJ and require a mounting kit with higher wind tolerances

Key Features

Versatile Installation – Compatible with both framed and frameless PV modules and supports portrait configuration.
Fixed 20° Tilt – Optimized for solar energy production.
Universal Engineering – Designed to meet all building codes, local regulations, and environmental load requirements.
Durable Materials – Hot-dip galvanized steel construction for corrosion resistance.
Fast and Efficient Assembly – Pre-cut and pre-drilled components for quick installation, reducing labor costs.

Mounting Benefits

Ground Screw Mount Option

Quick Installation – Ground screws can be installed rapidly without the need for concrete curing time.
Minimal Site Preparation – Ideal for locations with uneven terrain, reducing the need for grading and excavation.
Heavy Equipment Required – Installation requires specialized machinery to drill and secure the ground screws.
Strong and Secure Foundation – Provides excellent stability and resistance to uplift forces.

Concrete Foundation Option

Reliable and Long-Lasting – Concrete foundations offer a solid and permanent support structure.
Customizable to Site Conditions – Can be engineered to meet local soil and load requirements.
Extended Installation Time – Requires excavation, formwork, and curing time for the concrete to set properly.
No Specialized Machinery Needed – Unlike ground screw installations, concrete foundations do not require heavy drilling equipment.

Trident Mount Option

Quick Installation – Works efficiently in various climates and soil conditions.
Minimal Site Disturbance – Low environmental impact with a removable and reusable design.
Adaptable to Slopes – Eliminates the need for costly excavation or drainage.
Strong Structural Support – Engineered to handle both downward and uplift forces.

Shipping Information

Custom shipping is available at an additional rate to businesses with the means to unload the ground mount off the truck (6-ton forklift with a minimum of 8' forks).
No direct-to-consumer shipping.
Not eligible for shipping discounts or coupons.

Additional Notes

Professional Installation Recommended – Some mounting options, such as the ground screw system, require heavy equipment not provided with the kit.
Regional Variations – The mounting system’s spans vary by location: approximately 9-foot spans in the Southwest and approximately 7-foot spans in the Midwest.

Please note that the solar mounting system has different spans for different regions. The Southwest region has approximately 9-foot spans, while the Midwest region has approximately to 7-foot spans.

Chiko USA GroundFlex U2V Solar Panel Ground Mount Kit | Standard Module Version
